| Item | Clamping range(mm) | Welding Nuts(mm) | Side bolts(mm) | Capacity(kg/m3) | Size hxb(mm) | bxs(mm) | Design load(kN) | Art No. |

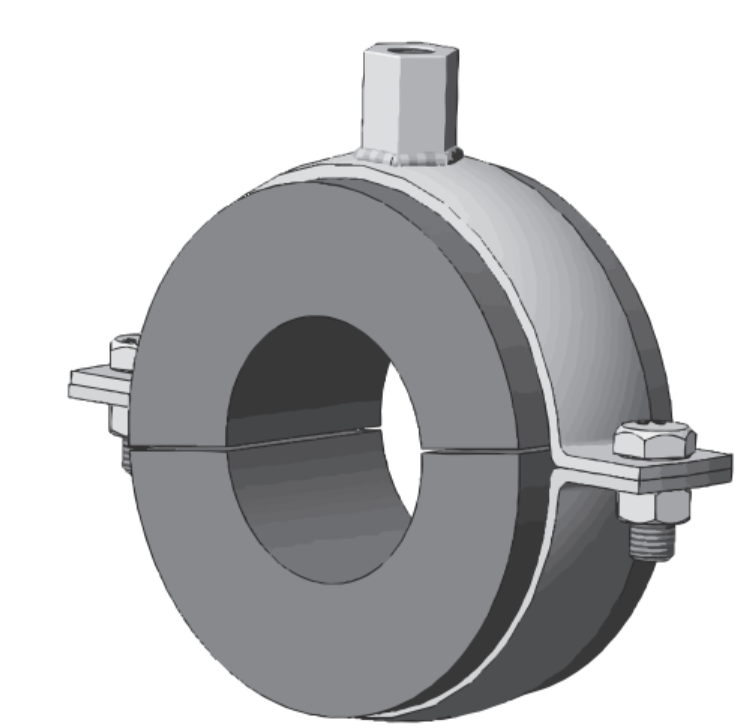

| 22A Upright Insulation Pipe Ring-HDG | 22 | M10X19 | M8X30 | 300 | 25*50 | 25*2 | 0.370 | 10016 |
| 25A Upright Insulation Pipe Ring-HDG | 25 | M10X19 | M8X30 | 300 | 25*50 | 25*2 | 0.370 | 10017 |
| 32A Upright Insulation Pipe Ring-HDG | 32 | M10X19 | M8X30 | 300 | 25*50 | 25*2 | 0.420 | 10018 |
| 40A Upright Insulation Pipe Ring-HDG | 40 | M10X19 | M8X30 | 300 | 25*50 | 25*2 | 0.520 | 10019 |
| 48A Upright Insulation Pipe Ring-HDG | 48 | M10X19 | M8X30 | 300 | 25*50 | 25*2 | 0.470 | 10020 |
| 57A Upright Insulation Pipe Ring-HDG | 57 | M10X19 | M8X30 | 300 | 25*50 | 25*2 | 0.490 | 10021 |
| 76A Upright Insulation Pipe Ring-HDG | 76 | M10X25 | M10X40 | 300 | 30*50 | 32*2 | 0.530 | 10022 |
| 89A Upright Insulation Pipe Ring-HDG | 89 | M10X25 | M10X40 | 300 | 30*50 | 32*2 | 0.620 | 10023 |
| 108A Upright Insulation Pipe Ring-HDG | 108 | M12X30 | M12X40 | 300 | 30*50 | 32*2 | 0.650 | 10025 |
| 114A Upright Insulation Pipe Ring-HDG | 114 | M12X30 | M12X40 | 300 | 40*50 | 32*2 | 0.690 | 10024 |
| 133A Upright Insulation Pipe Ring-HDG | 133 | M12X30 | M12X40 | 300 | 40*50 | 32*2 | 0.780 | 10026 |
| 140A Upright Insulation Pipe Ring-HDG | 140 | M12X30 | M12X40 | 300 | 40*50 | 32*2 | 1.530 | 100422 |
| 159A Upright Insulation Pipe Ring-HDG | 159 | M12X30 | M12X40 | 300 | 40*50 | 32*2 | 1.600 | 10028 |
| 165A Upright Insulation Pipe Ring-HDG | 165 | M12X30 | M12X40 | 300 | 40*50 | 32*2 | 1.670 | 10027 |
| 219A Upright Insulation Pipe Ring-HDG | 219 | M16X30 | M16X40 | 300 | 40*50 | 40*3 | 1.730 | 10029 |
| 273A Upright Insulation Pipe Ring-HDG | 273 | M16X30 | M16X40 | 300 | 40*50 | 40*3 | 2.850 | 10030 |
