Item	Clamping Range(mm)	Connection thread(mm)	Installation	Size(mm)	Design loads(kN)	Art No.

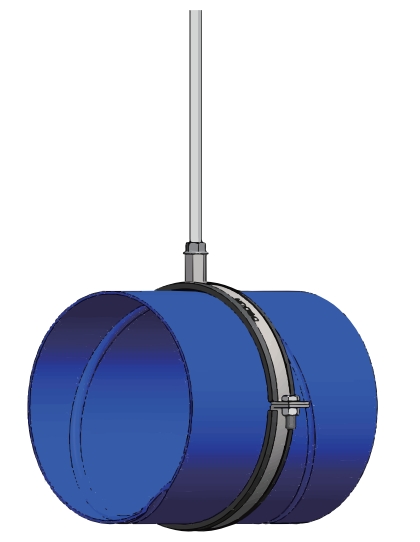

80mm Ventilation pipe ring-HDG	80	M8/10	single hanging	80	0.7	501063
90mm Ventilation pipe ring-HDG	90	M8/10	single hanging	90	0.7	501064
100mm Ventilation pipe ring-HDG	100	M8/10	single hanging	100	0.7	501065
112mm Ventilation pipe ring-HDG	112	M8/10	single hanging	112	0.7	501066
125mm Ventilation pipe ring-HDG	125	M8/10	single hanging	125	0.7	501067
140mm Ventilation pipe ring-HDG	140	M8/10	single hanging	140	0.72	501068
150mm Ventilation pipe ring-HDG	160	M8/10	single hanging	150	0.72	501069
160mm Ventilation pipe ring-HDG	160	M8/10	single hanging	160	0.72	501070
180mm Ventilation pipe ring-HDG	180	M8/10	single hanging	180	0.72	501071
200mm Ventilation pipe ring-HDG	200	M8/10	single hanging	200	0.72	501072
224mm Ventilation pipe ring-HDG	224	M8/10	single hanging	224	0.72	501073
250mm Ventilation pipe ring-HDG	250	M8/10	single hanging	250	0.72	501074
280mm Ventilation pipe ring-HDG	280	M8/10	single hanging	280	0.72	501075
300mm Ventilation pipe ring-HDG	300	M8/10	single hanging	300	0.72	501076
315mm Ventilation pipe ring-HDG	315	M8/10	single hanging	315	0.72	501077
355mm Ventilation pipe ring-HDG	355	M8/10	single hanging	355	0.72	501078

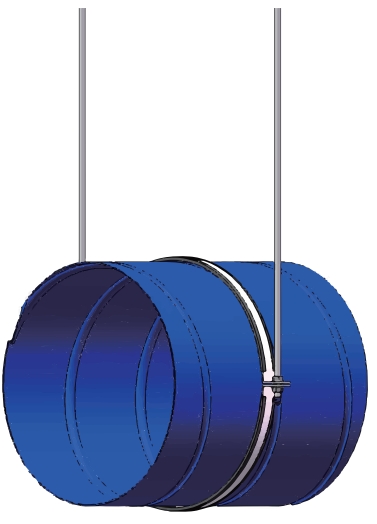

400mm Ventilation pipe ring-HDG	400	M10	double hanging	400	0.72	501079
450mm Ventilation pipe ring-HDG	450	M10	double hanging	450	1.15	501080
500mm Ventilation pipe ring-HDG	500	M10	double hanging	500	1.15	501081
560mm Ventilation pipe ring-HDG	560	M10	double hanging	560	1.15	501082
600mm Ventilation pipe ring-HDG	600	M10	double hanging	600	1.15	501083
630mm Ventilation pipe ring-HDG	630	M10	double hanging	630	1.15	501084
710mm Ventilation pipe ring-HDG	710	M10	double hanging	710	3	501085
800mm Ventilation pipe ring-HDG	800	M10	double hanging	800	3	501086
900mm Ventilation pipe ring-HDG	900	M10	double hanging	900	3	501087
1000mm Ventilation pipe ring-HDG	1000	M10	double hanging	1000	3	501088
1120mm Ventilation pipe ring-HDG	1120	M10	double hanging	1120	3	501089
1250mm Ventilation pipe ring-HDG	1250	M10	double hanging	1250	3	501090

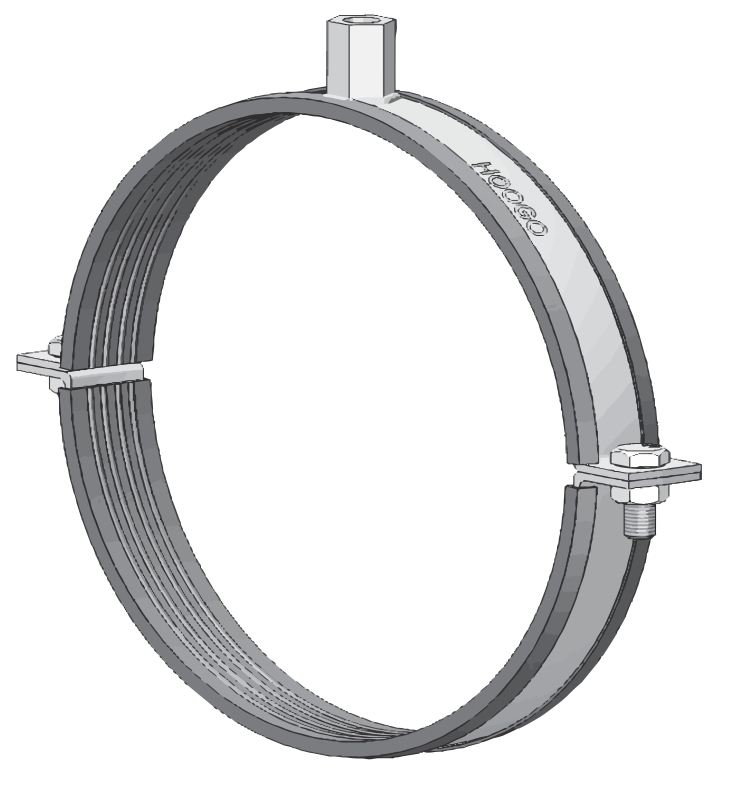

Ventilation pipe ring

Product Characteristics

Application Scenarios
